CO2 laser cutting machine

Motor imported from the United States, with high precision synchronous system, cutting speed is fast, high precision;

Performance characteristics

1. Motor imported from the United States, with high precision synchronous system, cutting speed is fast, high precision;

2. Honeycomb platform and blade platform are optional, with lower suction air and air pressure system without yellowing;

3. Imported laser lens, fine spot, good incision, high power, not easy to aging film removal;

4. The software supports AI,PLT,BMP,JPG,DXF and DST modes, and is seamlessly compatible with Corel Draw,CAD,Photoshop and other graphic and text software for easy operation.

Application area

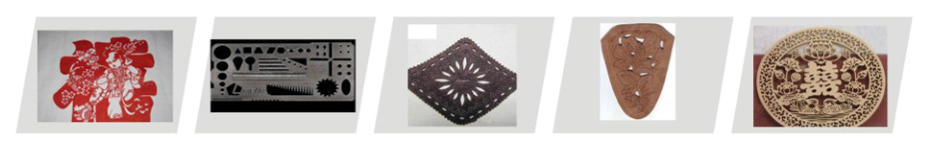

CO2 laser cutting machine is suitable for leather, cloth, epoxy resin, wood products, paper, acrylic, wool, plastic, rubber, bamboo products and other non-metallic materials.

Technical Parameters

Model	ZT-CC0690/1080/1206/1309/1610
engraving area(mm)	600 × 900 / 1000 × 800 / 1200 × 600 / 1300 × 900 / 1600 × 1000
Overall dimensions(mm)	1530 × 1070 × 1070 / 1825 × 1580 × 1200 / 1910 × 1380 × 1100 / 1910 × 1710 × 1370 / 2240 × 1780 × 1290
Machine weight(Kg)	260 / 430 / 430 / 525 / 605
laser power(W)	60-130W
Cooling way	Water Cooling
engraving speed(m/min)	0~150
Power requirements	AC 220-240V,50/60Hz
Environmental requirements	Temperature: 5 ~ 40 ℃ humidity: 5 ~ 80% no condensate, no dust or dirt
power consumption	1250W
