1. Good beam quality, smaller focusing spot and super-fine marking can be achieved
2. Stable performance, small size, no consumables, fast marking speed and high efficiency
3. The thermal impact area is very small, and there will be no thermal effect and material burning problem.
4. applicable to a wider range of products, metal or non-metal product materials can be applied to achieve a multi-purpose machine

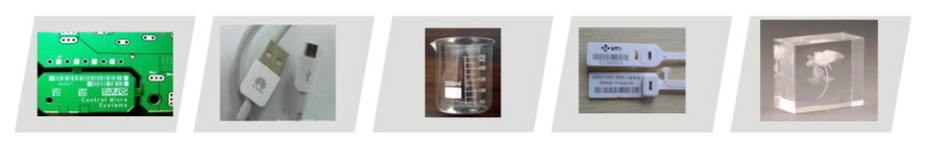

Ultraviolet laser marking machine, mainly used for glass, charger shell, headphones, TFT, LCD, plasma screen, textiles, chip ceramic, monocrystalline silicon chip, IC chip, sapphire, polymer film, medicine, cosmetics, electrical wiring, apple mobile phone cable polymer materials such as packaging bottles (box) surface marking, microporous.
| Model | ZT-MUV3,ZT-MUV5,ZT-MUV10 |
| laser power | 3W/5W/10W |
| Wave length | 355nm |
| Min.charaacter size | ≤0.2mm |
| Min.linear width | ≤0.1mm |
| Marking speed | ≤7000mm/s |
| Cooling way | water cooling |
| Machine weight | 120KG |
| Power consumption | 800W |
| Marking scope | 110m*110mm(optional) |
| Machine dimension | 750mm*880mm*1500mm |
| Power requirements | 220V±10/50HZ/60HZ |
Suzhou zonto laser technology Co., Ltd.
