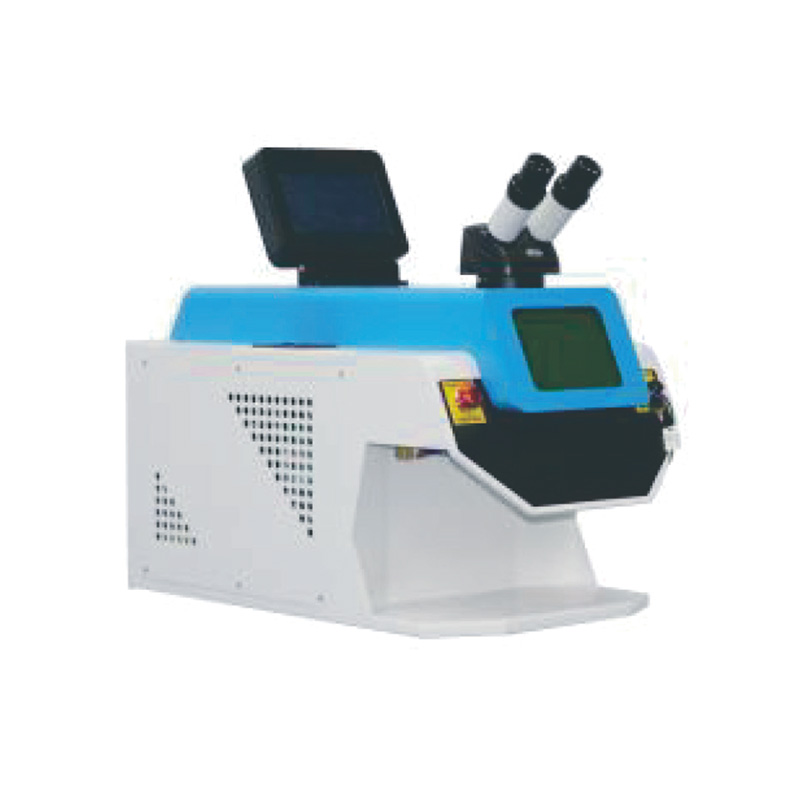

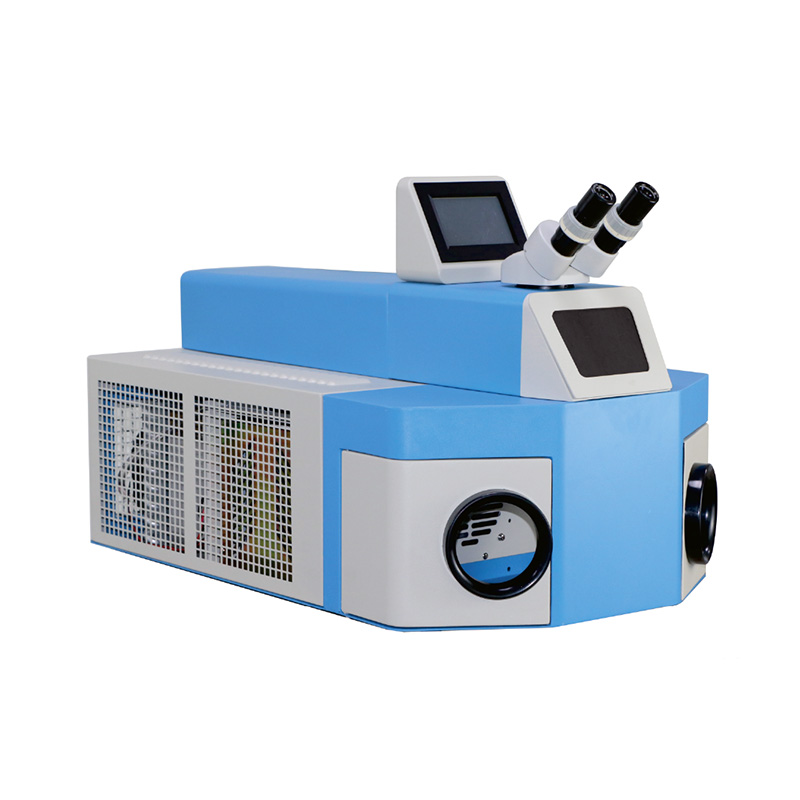

Jewelry Laser Welding Machine
Laser Welding Machine
Laser jewelry spot welding machine is designed for the processing of small parts, especially for gold and silver jewelry hole, spot weld lines, Mosaic parts welding.
Inquire
Contact Us
Product Description

Application Area

Laser jewelry spot welding machine is designed for the processing of small parts, especially for gold and silver jewelry hole, spot weld lines, Mosaic parts welding.


4


Technical Parameter

ModelZT-JWF-200W LSZT-JWF-150WZM
Maximum Laser Power200w150w
Laser Wavelength1064nm1064nm
Focusing Cavity ReflectorImported Ceramic Focusing CavityImported Ceramic Focusing Cavity
Laser Frequency1-25hz1-20hz
Pulse Width0.2-10ms0.2-10ms
Spot Adjustment Range0.2-2mm0.2-2mm
Aimingand PositioningMicroscope, Ccd Two-in-oneMicroscope, Ccd Two-in-one
Cooling Power Of ChillerWater-coolingAir-cooling
Rated Power8kw5kw
Electricity Demand220v+5v 50hz/60a220v+5v 50hz/60a
External DimensionsHost:360x550x1170mmHost:800x500x620mm
Fuse SizeRusty Steel Wire: 0.2-0.5mmRusty Steel Wire: 0.2-0.3mm
