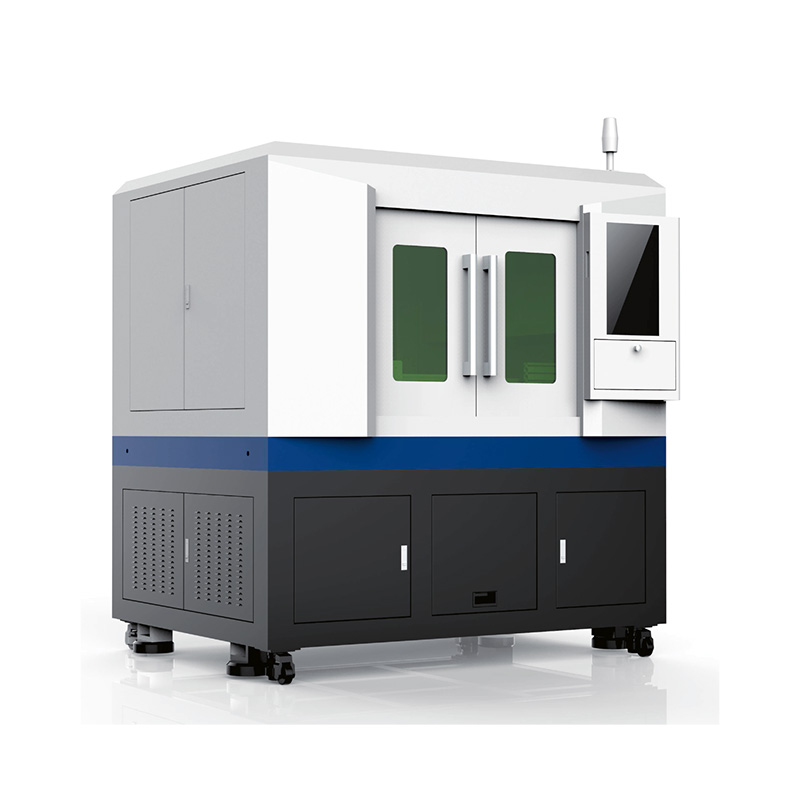

Precision Laser Cutting Machine
Laser Cutting Machine
High and low double working table, save loading and unloading time.
High-safety fully enclosed protective cover.
Efficient CNC control system.
Inquire

Performance characteristics

High and low double working table, save loading and unloading time.

High-safety fully enclosed protective cover.

Efficient CNC control system.


Application Area

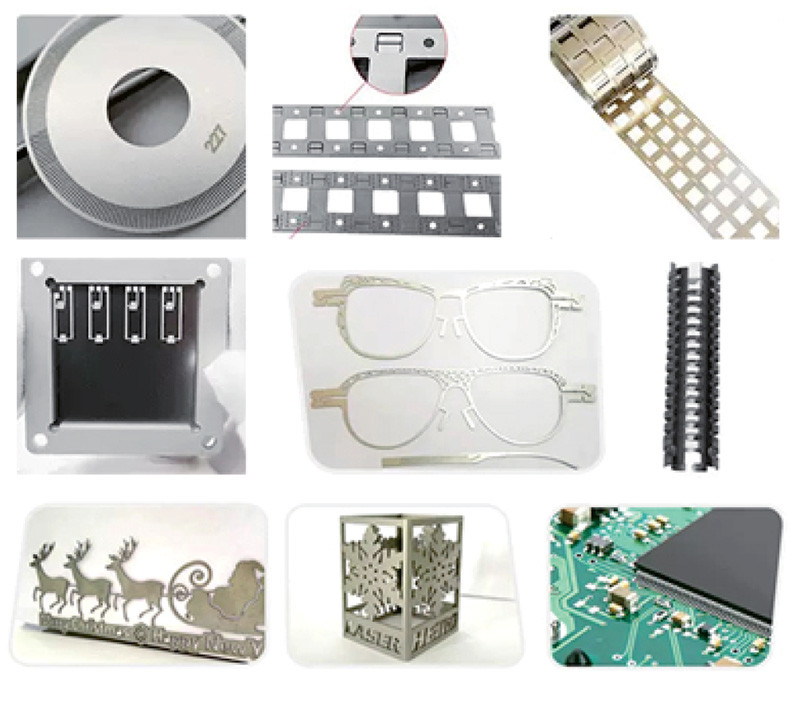

Professional for cutting 0.2mm-6mm stainless steel plate,galvanized plate,electrolytic plate silicon plate, 0.2mm-6mm aluminum alloy, 0.5-6mm brass and many other metal materials(thickness and material are related to the laser and gas).


2


Technical Parameter

ModelZT-P6060
Laser TypeOptical fiber
Laser Wavelength1064nm
Output Power1000/1500W/2000W/3000W
Processing AreaStandard 600* 600mm, other itineraries can be customized
Cutting Speed<1000mm/s
Positioning Accuracy0.006mm
Cooling MethodWater-cooling
Working VoltageAC 380V ± 10%,50HZ/60HZ
Whole Machine Power2KW
Whole Machine Weight600kg
Dimensions1800*1430*1850mm
