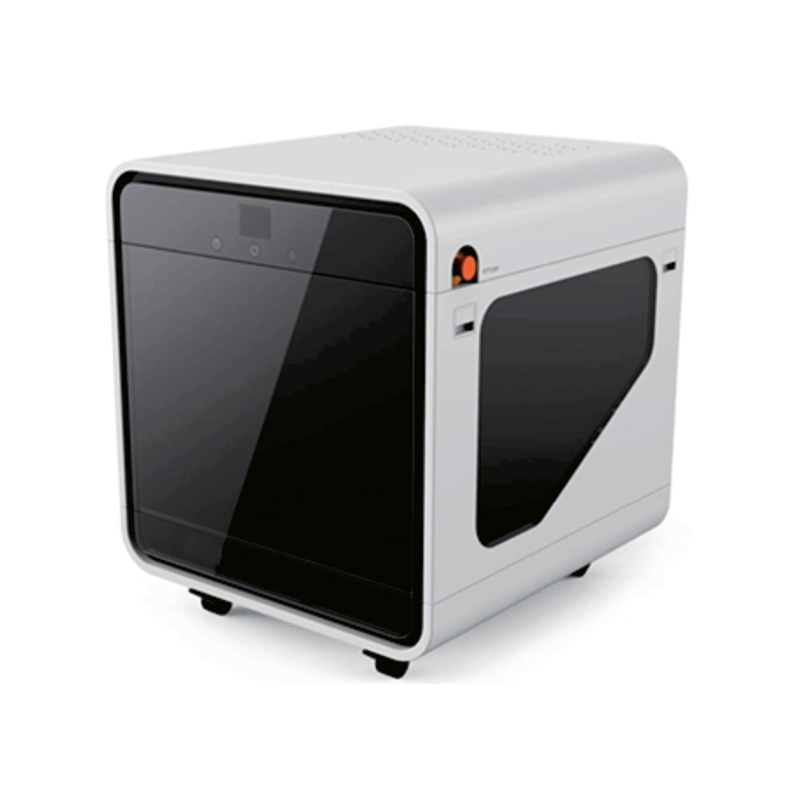

3D Laser Engraving Machine
Laser Coding & Marking Machine
Dimension before packing: 1120mm*880mm*1000mm(L*W*H)
Dimension after packing: 1300mm*1100mm*1500mm(L*W*H)
Weight before packing：200 kg
Weight after packing：250kg
Inquire
Contact Us
Product Description

Application Area

3

Technical Parameter

ModelZT-3D-Pro
LaserDiode pumped laser 532 nm
Diode life20,000 hours
Maximum engraving range(mm)320*450*100mm
Maximum engraving speed5000 points/second
Diamater of dots40-80 um
Typical engraving time<2mins for 558cm crystal cube
Mass productionYes
Power consumption500W
Accuracy(X,Y,Zaxes)0.02mm/300mm
Repositioning Accuracy(X,Y,Z axes)<3 um/300mm
Cooling systemair cooling system
Working environment15°C~30°C
Input power standard220/110 V,50HZ


Model

Argus Pro

Laser

Diode pumped laser 532 nm

Diode life

20,000 hours

Maximum engraving range(mm)

320*450*100mm

Maximum engraving speed

5000 points/second

Diamater of dots

40-80 μm

Typical engraving time

<2mins for 558cm crystal cube

Mass production

Yes

Power consumption

500W
Accuracy(X,Y,Z axes)

0.02mm/300mm

Repositioning Accuracy(X,Y,Z axes)

<3μm/300mm

Cooling systemair cooling system
Working environment

15℃~30℃

Input power standard

220/110 V, 50HZ
