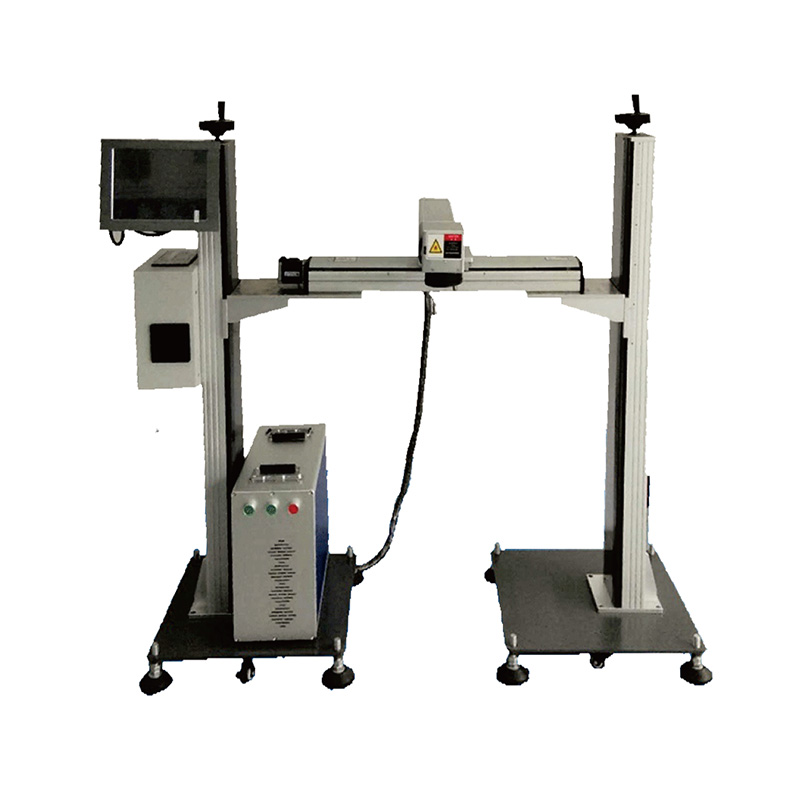

Fiber Laser Printer
Laser Coding & Marking Machine
High quality fiber laser, stable energy output, clear and beautiful effect of marking.
The software has powerful functions, supports multiple languages, simple operation and stable pertormance.
Automatic structure design, compact size, flexible installation, automatic work, save labor costs.
The whole machine is air-cool, no consumables, no pollution, no maintenance, long service life, safe, stable and efficient.
Inquire

Performance Characteristics

High quality fiber laser, stable energy output, clear and beautiful effect of marking.

The software has powerful functions, supports multiple languages, simple operation and stable pertormance.

Automatic structure design, compact size, flexible installation, automatic work, save labor costs.

The whole machine is air-cool, no consumables, no pollution, no maintenance, long service life, safe, stable and efficient.


Application Area

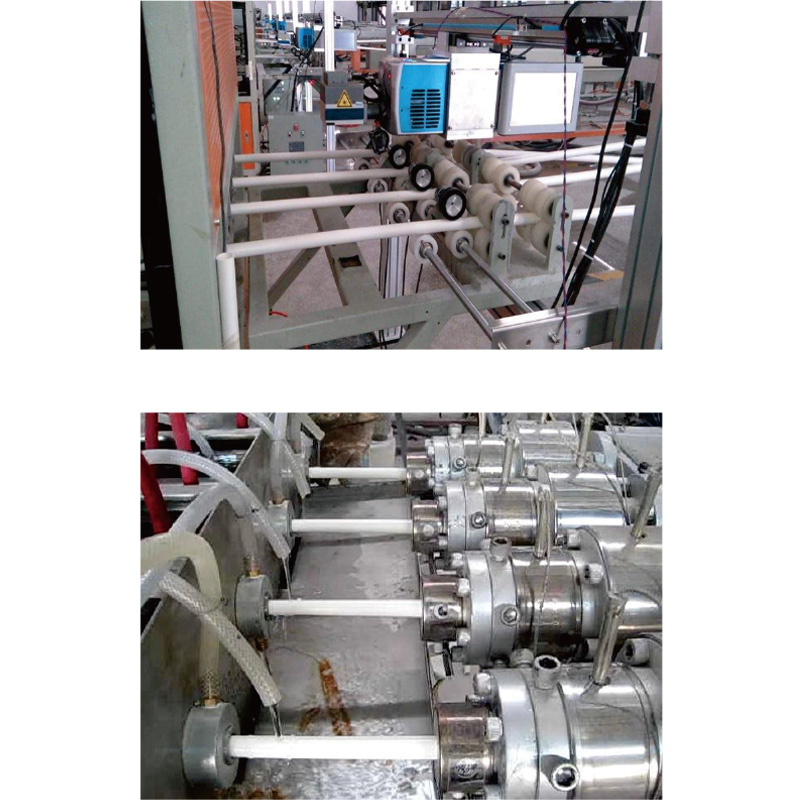

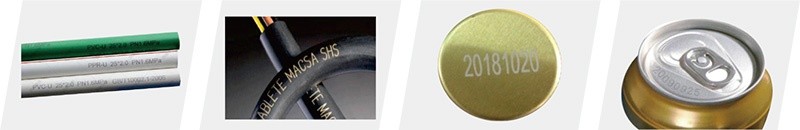

Applicable to all kinds of metal materials and some plastic products, widely used in drug packaging, food packaging, cable, rubber, HDPE pipe,  3c products, chemical building materials and other fields of production and effective date, batch number, transformation, manufacturer name and trademark and other graphics and text marks.


4


Technical Parameter

ModelZT-PF20,ZT-PF30,ZT-PF50,ZT-PF70,ZT-PF100
laserpower20W/30W/50W/70W/100W
Wave length1064 um
Min.charaacter size≤0.4mm
Min.linear width≤0.1mm
Marking speed≤7000mm/s
Cooling wayAir cooling
Machine weight70KG
Power consumption800W
Marking scope110mmX110mm
Machine dimension800mmX520mmX1450mm
Power requirements220V± 10/50HZ/60HZ
