Fiber Laser Marking Machine
Fiber Laser Marking Machine
◆Laser power output is stable,and light spot quality is good.
◆Quick marking and cutting speed at 2-3 times that of conventional machines.
◆There is no restriction in operation systems.It is convenient in operation,with fully closed light paths,so it is stable, reliable and free in maintenance with ultra-long service life up to more than 100,000 hours.
◆No pollution,no noise,and no consumable materials,with power consumption at 5%-10% of consumption by traditional machines.
Inquire

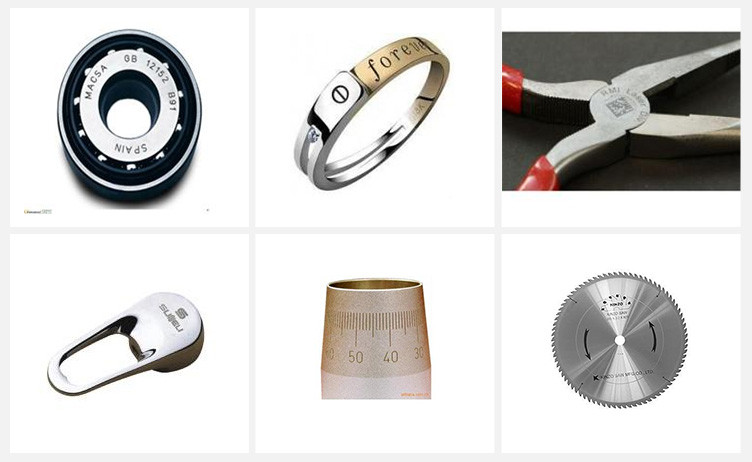

Application Area

This kind of machine widely used in Mobile power mobile phone shells, rings, bracelets,  mugs, glasses, watches, key, instrumentation, sanitary ware, home appliances, electronic components, integrated circuits (IC), the cell phone button, luggage buckles, cutlery, water faucet, stainless steel products, car accessories, cell phone chargers, cables and wires, and medical device E-cigarette  industries.


1

Technical Parameter

ModelZT-MF20,ZT-MF30,ZT-MF50,ZT-MF100
laserpower20W/30W/50W/100W
Wave length1064 um
Min.charaacter size≤0.4mm
Min.linear width≤0.1mm
Marking speed≤7000mm/s
Cooling wayAir cooling
Machine weight70KG
Power consumption800W
Marking scope110mmX110mm(optional)
Machine dimension650mmX880mmX1450mm
Power requirements220V± 10/50HZ/60HZ
