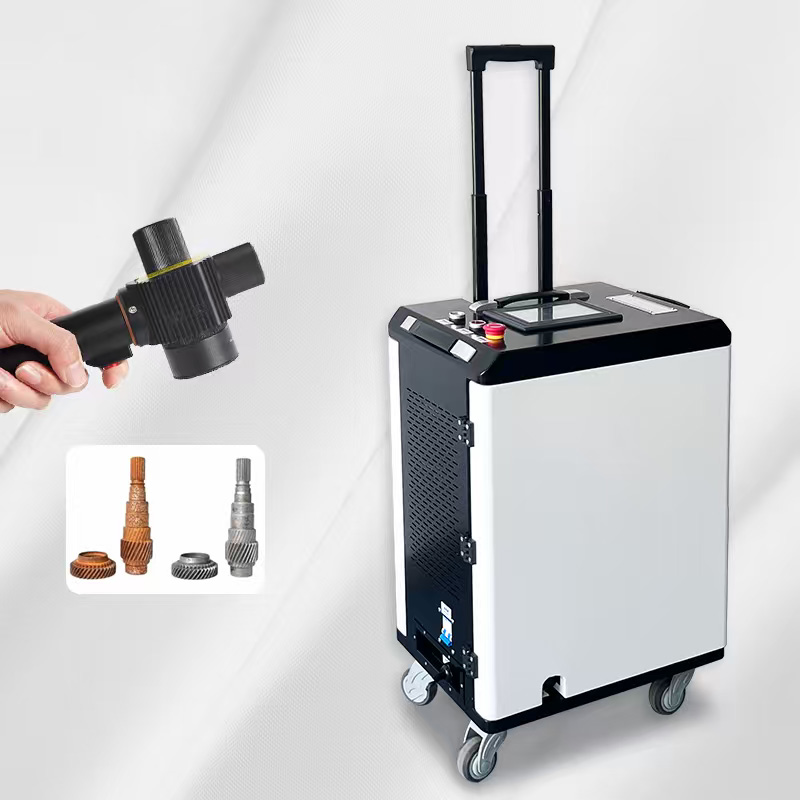

Fiber Laser Cleaning Machine
Fiber Laser Cleaning Machine
The pulse laser machine uses a pulse laser beam, which has the characteristic of high-energy instantaneous release. They shatter or evaporate the oxides, coatings, and other materials on the rust removed surface through short pulse high-energy beams. The thermal impact on the substrate is relatively small.
Inquire

Features

The pulse laser machine uses a pulse laser beam, which has the characteristic of high-energy instantaneous release. They shatter or evaporate the oxides, coatings, and other materials on the rust removed surface through short pulse high-energy beams. The thermal impact on the substrate is relatively small.


Technical Parameters


Continuous LaserPulsed Laser
Laser TypeContinuous Wave LaserPulsed Laser
Maximum Power1500/2000/3000W100/200/300/500W
Scanning Speed6000mm/s6000mm/s
Scanning Width20-200mm20-200mm
Scanning Efficlency0.8-1.2m/min0.2-0.5m/min
Cooling MethodWater CoolingWater Cooling or Alr Cooling


Advantage Comparison

Comparison itemsLaser cleaningChemical cleaningMechanical polishingDry ice cleaningUltrasonic cleaning
Cleaning MethodLaser, non-contactChemical cleaning agent, contact typeMechanical/sandpaper, contact typeDry ice, non-contactCleaning agent, contact type
Workpiece damageNon-destructiveDamagedDamagedDamagedDamaged
Cleaning efficiencyHighLowLowMediumMedium
ConsumablesJust need to power onChemical cleaning agentsSandpaper, grinding wheel, oilstone, etcDry iceSpecial cleaning solution
Cleaning effectVery excellent, high cleanlinessGenerally, unevenGenerally, unevenExcellent, unevenExcellent, with a small cleaning range
Accurate cleaningAccurate and controllable, high precisionUncontrollable, poor accuracyUncontrollable, with average accuracyUncontrollable, poor accuracyCannot specify cleaning range
Safety/Environmental ProtectionPollution-freeChemical pollution of the environmentPollute the environmentpollution-freePollution-free
Manual operationEasy to operate, handheld or automatedThe process flow is complex and requires high demands on operators, requiring pollution protection measures to be takenIt is very labor-intensive and requires pollution prevention measuresEasy to operate, handheld or automatedEasy to operate, but requires manual addition of consumables
